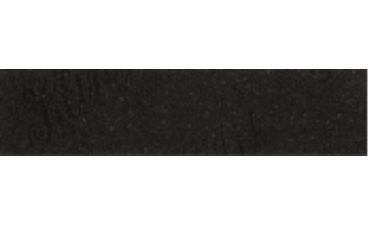

Operating Guidelines : Max. Operating Temperature - 500°C , Min Operating Temperature - (-200°C) Max. Operating Pressure - 130 Bar. (Indian Standard IS 2712/1998 : Gr. W/1 & 0/1). Application : Top quality oil and petrol resistant material suitable for fuels, oils, solvants including aromatic and chlorinated hydrocarbons for high mechanical and thermal demand. Excellent resistance compatibility for natural & town gas, water, steam, alkalines, mild acids and many other chemicals. Suitable for potable water (WRC Certification). Composed of NBR binder and chrysotile asbestos. Colour : Black. Typical Specification : British BS 1832 Grade A&0, German DIN 375-4 IT O, American ASTM F104-F112121 M8, French NFT48001 Cat. D. Available in metallic also.

Composition : Asbestos free gasket material based on Aramid fibre and wire reinforced with NBR binder. Operating Guidelines : Max. Operating Temperature - 300°C , Max. Operating Temperature for Steam - 300°C, Max. Operating Pressure - 100 Bar. Application : Very robust because of wire reinforcement. Suitable for use with oils, water, steam and hydrocarbon. Recommended for pulsating applications.

ukl

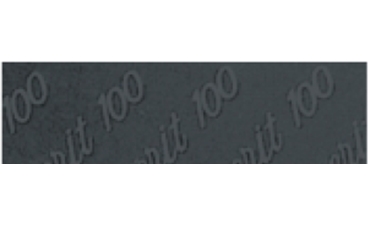

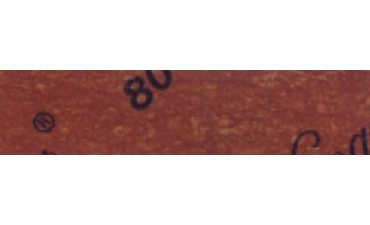

Operating Guidelines : Max. Operating Temperature - 510°C , Min Operating Temperature - (-200°C) Max. Operating Pressure - 100 Bar. (Indian Standard IS 2712/1998 : Gr. W/1 & 0/2). Application : High quality grade similar to Klingerit widely used in the petrochemical industry. Especially suitable for steam, gas, water, alkalines and non aggressive media. Composed of SBR binder and chrysotile asbestos. Colour : Grey. Typical Specification : British BS 1832 Grade A&0, German DIN 375-4 IT 400, American ASTM F104-F112551 M8, French NFT48001 Cat. D.
